General Specifications
- Remote Control
- High Accuracy Dual-Axis Gyro Stabilized Independent Electro-Optic Sight
- Automatic target detection and tracking
- Automatic ballistic calculation
- High Hit Probability
- Automatic slew to targets assigned from the CMS, radar, target designator
- Day/night operation under various weather and terrain conditions
- Surveillance mode (without aiming the gun)
- Advanced graphical user interface
- Picture-In-Picture (PIP)
- Integration with Combat Management System
- Below Deck Ammunition Reloading System (optional)
- Manual operation as a back-up mode
- Modular structure for upgrades and options
- High reliability
- Easy to integrate
Sub-Units

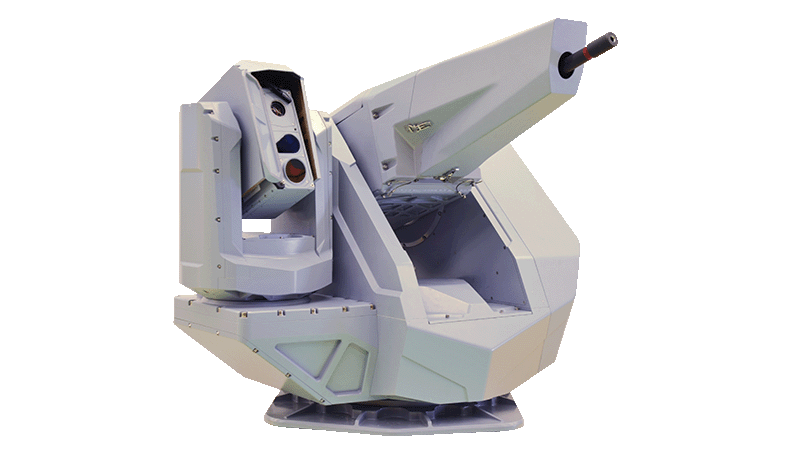

- Stabilized Turret
- System Operating Panel
- EO Gimbal
- Electro-Optic Unit (Thermal Camera, TV Camera, Laser Range Finder)
- Mission Computer
- Electronic Control and Interface Unit
- Power Unit
Technical Data
- Turret Weight: <450 kg (Including gun and ammunition)
- Gun: 7.62mm MG, 12.7 mm MG, 12.7mm NSV, 40mm Grenade
Launcher
- Ammunition Capacity: 250 pcs.
- Gun Elevation Angle : -20(±2)° / +60(±2)°
- Gun Traverse Angle: n x 360° (with slipring option)
- Gun Traverse Angle: ±135° (without slipring)
- Gun Angular Speed (max.): 60°/s
- EO Elevation Angle: -20(±2)° / +60(±2)°
- EO Traverse Angle: ±7° (with respect to the gun)
- EO Angular Speed (max.): 60°/s
- Power Supply: 28 VDC or 110/220VAC 50/60Hz
Applications
- Asymmetric Warfare
- Counter-Terrorism / Anti-Smuggling
- Coastal Defence
- Base Protection
Naval Platforms
- Patrol Boats
- Coast Guard Boats
- Combat Ships
- Landing Ships
Contact us for more details: marketing@aselsan.com
