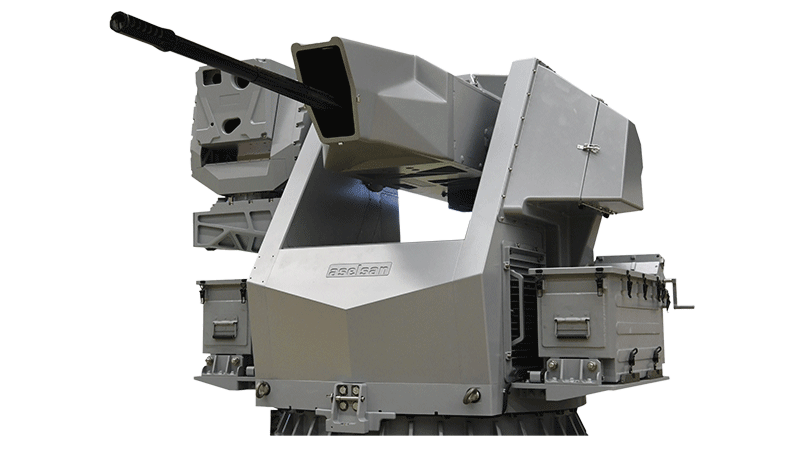

SMASH 200/25 is a Remote Controlled Naval Gun System fitted with a 25mm gun integrated on a stabilized pedestal with independent Electro-Optic Sight and surveillance mode (without aiming the gun). The system has excellent tracking and firing ability with a very high hit accuracy. It can be fed via two seperate ammunition lines selected by the operator, using the remote operating panel.

• Effective against asymmetric threats

• Day/night operation under various weather and terrain conditions

• Automatic target detection and tracking

• Automatic ballistic calculation

• Automatic slew to targets assigned from the CMS, radar, target designator

• Integration with Combat Management System

• Advanced graphical user interface

• Picture-In-Picture (PIP)

• High Accuracy Dual-Axis Gyro Stabilized Independent Electro-Optic Sight

• Surveillance mode (without aiming the gun)

• Manual operation as a back-up mode

• Easy to integrate

• No deck penetration (except cables)

• High reliability

• Modular structure for upgrades and options

Sub-Units

• Turret

• System Operating Panel

• Mission Computer

• Commander Control Unit

• Electro-Optic Sight

  • Thermal Camera

  • TV Camera

  • Laser Range Finder

• Manuel Control Panel

• Servo Controller

• Power Unit

• Safety Switch

• Slipring (optional)

• Electronic Control and Interface Unit

Technical Data

• Turret Weight: <1350 kg (Including gun and ammunition)

• Gun: 25mm KBA Automatic Cannon

• Rate of fire: 450-600 rounds/min

• Ammunition Feeding: Dual

• Ammunition Capacity: 2 x 125pcs

• Gun Elevation Angle: -15(±2)° / +55(±2)°

• Gun Bearing Angle: ±135° (without slipring) / : n x 360° (with slipring)

• Gun Angular Speed: 60°/s

• EO Elevation Angle: -30(±2)° / +80(±2)°

• EO Traverse Angle:  ±10° (with respect to gun turret)

• EO Angular Speed (max.): 60°/s

• Power Supply: 110/220 VAC 50/60Hz

Applications

• Asymmetric Warfare

• Counter-Terrorism/Anti-Smuggling

• Coastal Defence

• Base Protection

Naval Platforms

• Patrol Boats

• Coast Guard Boats

• Combat Ships

• Landing Ships

Contact us for more details: marketing@aselsan.com
