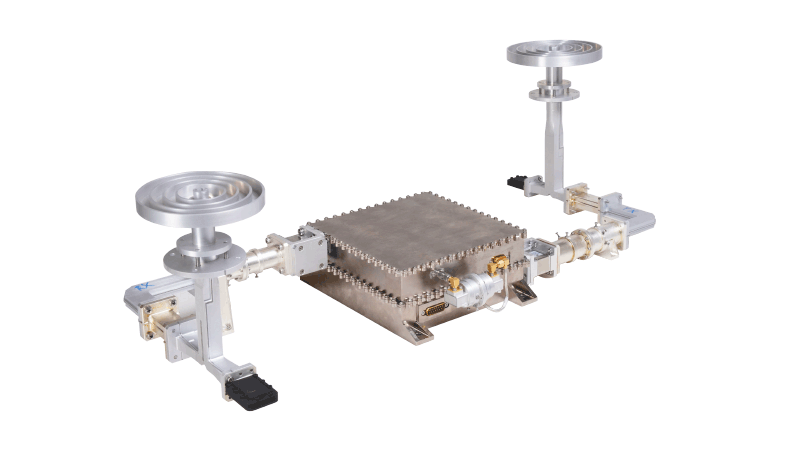

LOCUS LEOKu is a Ku-Band Bendpipe (Transparent) payload developed for LEO Satellites. The payload bandwidth is 50MHz and can be changed upon request and can support multiple user terminals. It can support up to 4 user terminals simultaneously and a min. 3 Mbps data rate for each user terminal. Payload can be manufactured with requested frequencies by tuning operating frequency range within Ku-Band. Thanks to the Beacon feature in Ku-Band, terminals and gateway antennas can perform satellite tracking.
Technical Specifications:
Receive frequency range: 13.75 - 14.50 GHz
Transmit & beacon frequency range: 10.95 - 12.75 GHz
Circular polarization
110dB to 140dB adjustable gain (0.5 dB adjustment step)
EIRP: 18 dBW (@θ=55°)
G/T: -20 dB/°K (@θ=55°)
CAN communication interface
Telemetry/telecommand (TM/TC) and power interface
Automatic level control mode (ALC)
Fixed gain mode (FGM)
Operating temperature: -20°C - +50°C
Storage temperature: -40°C - +85°C
Transmitter/receiver unit dimensions: 30cm x 25cm x 8cm
Transmitter/receiver unit mass: 3500g
Payload total envelope dimensions: 80cm x 40cm x 23cm
Payload total mass: 4800g
