Tactical mount TM 47 is a cheap option to mount the submachine gun AK 47, AK 74, AKM and their civilian clones by HUD collimators using Picatinny rail (Weaver, MIL-STD 1913) for fit. It is fastened to the base of the sight, the sight must be first dismounthed.
It is made in one size and three variants:
- S - Short version, which allows removing the handguard
- S+ - Dual emergency sights
- S++ - Dual emergency sights with Fiber-optic

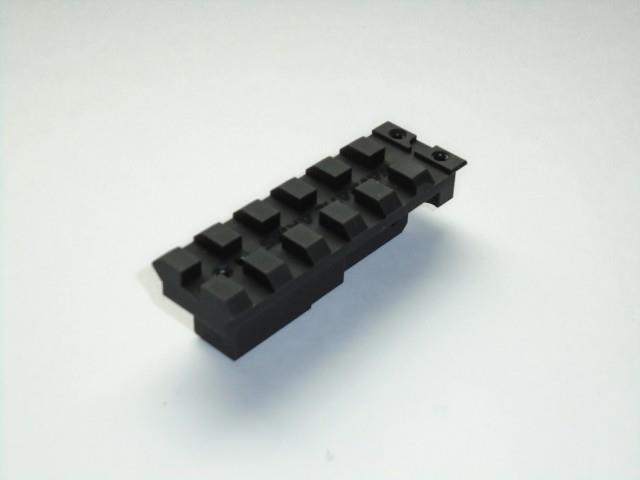

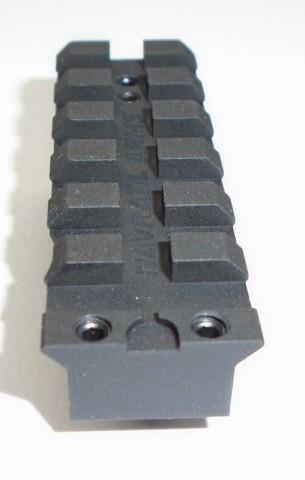

Mount is milled from aluminum alloys. The surface is sandblasted and then hard anodized with black dyeing. TM 47 S is clamped instead of sight. It is connect with the base of the sight with quenched steel pin and fixed in the final position by the four setting screws. It is necessary to secure screws by the glue on the threads to prevent loosening due shock at shooting.

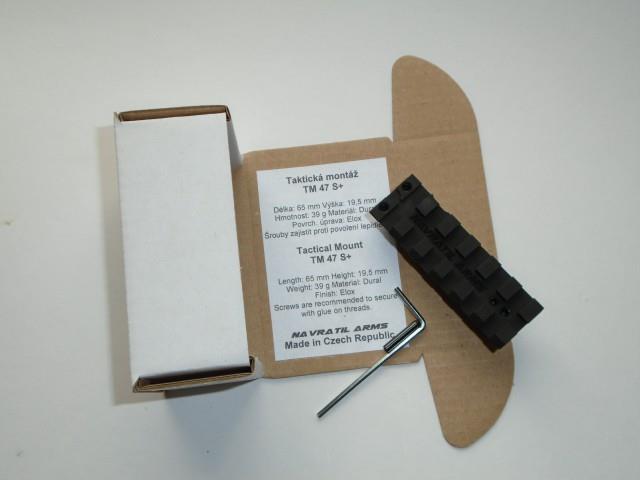

Version TM 47 S + is the second generation. Part of the tactical mount is a dual emergency sights.

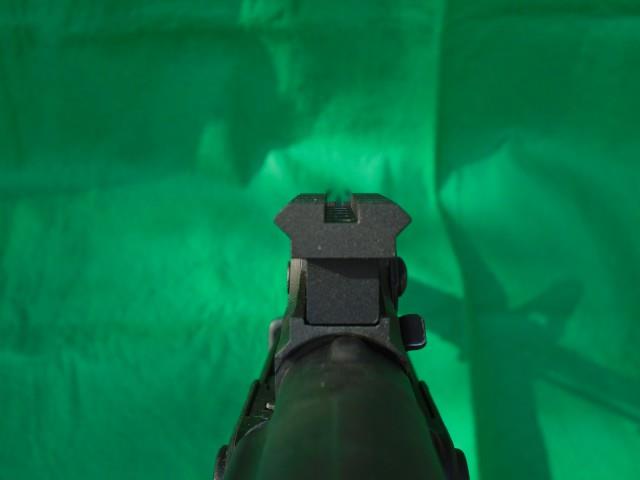

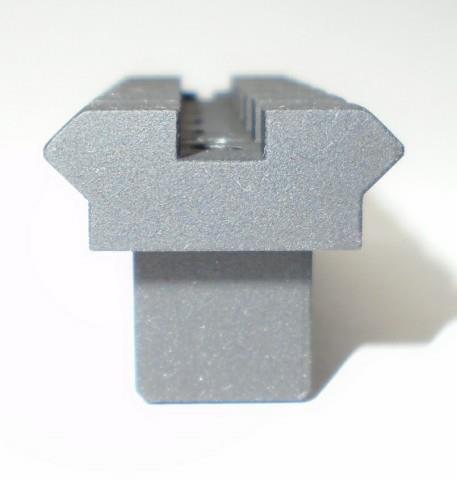

The groove 5 mm wide over the entire mount allows to a quick, intuitive aiming at a distance to 50 m. A more precise smaller sight in front of the tactical mount corresponds to its height of the original set at a distance of 800 m.
Technical data:
- Length: 65 mm
- Height: 19,5 mm
- Weight: 39 g
- Material: Aluminium alloy
- Surface finish: sandblasted, anodized
Recommendation:
- It is recommended to secure the screws by glue to prevent unwanted loosening.
- Intended for small collimators.
