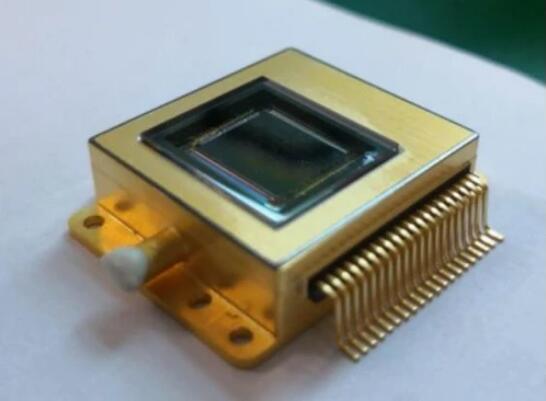

InGaAs 640×512 15μm focal plane array (FPA) detector, which has the characteristics of high detection sensitivity, long service life, low power consumption and light weight, provides 2/4/8 analog video output, and the maximum frame rate is over 300 Hz, The response bandwidth is 0.9μm(0.4μm can be extend)- 1.7μm.

The product is vacuum packaged in a metal tube shell, with a tube leg spacing of 1mm, a built-in temperature sensor and a 2 stage TEC cooler, the operating temperature range covers −40°C to +70°C, and the weight is less than 20g.

FEATURES
1. Shortwave infrared (0.9μm~1.7μm, can be extended to visible light) InGaAs focal planearray detector.
2. 640(H)×512(V) pixel array specifications.
3. 15μm×15μm pixel spacing.
4. 20×2 pin metal vacuum package.
5. 2/4/8 analog video output.
6 .Built-in temperature sensor,Built-in TEC cooler.
7. Pixel operable rate >99.5%.
8. Quantum efficiency >70%.

APPLICATIONS
1. Shortwave infrared imaging
2. Spectral imaging
3. Surveillance (night vision)
4. Semiconductor inspection
5. Medicine and Biology
6. Optical fiber communication
7. Astronomy science
8. High temperature imaging
9. Environmental and resource monitoring
