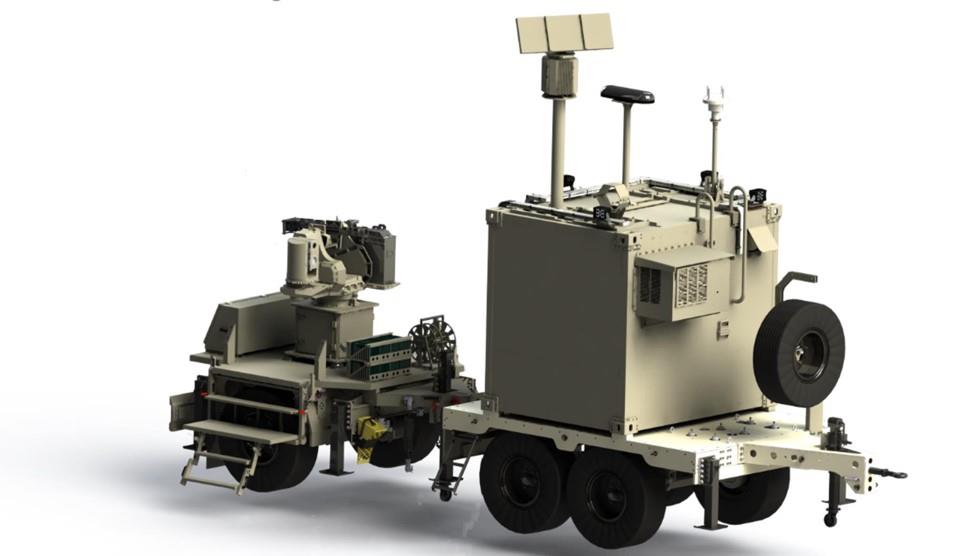

TUFAN 7.62mm x 51 , 6-Barrelled, Gatling Armed with Mobile Capabilities ( Command Control Shelter + Generator + Radar )
TUFAN 7.62mm x 51 , 6-Barrelled, Gatling Armed with Mobile Capabilities

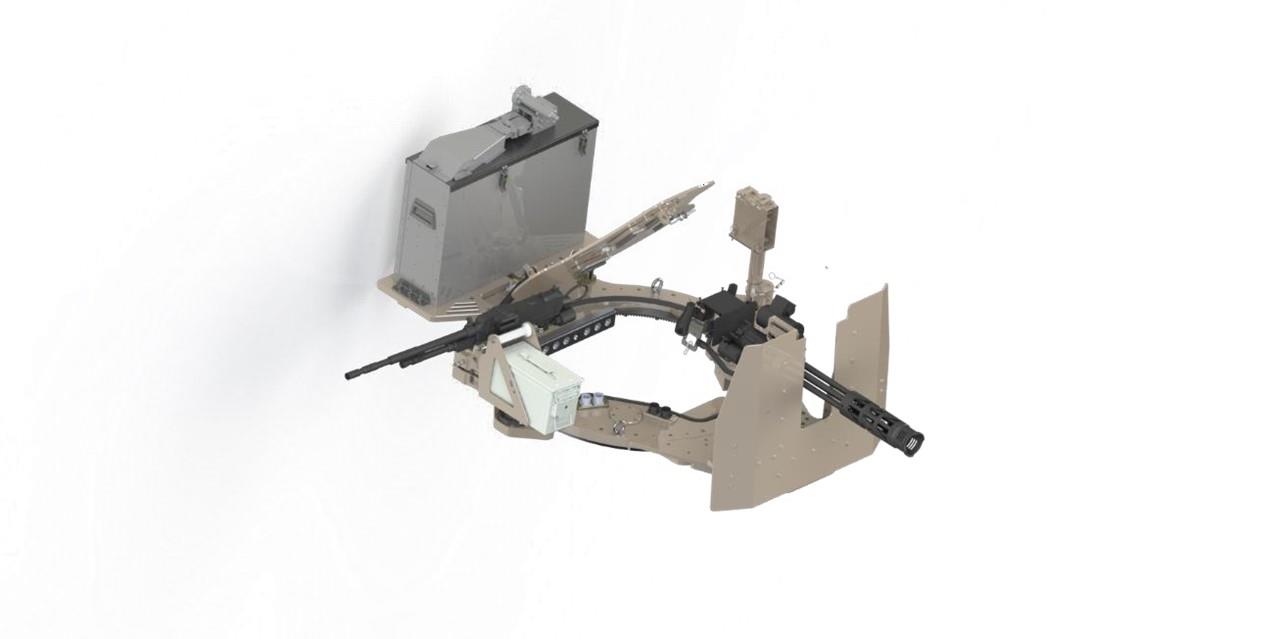

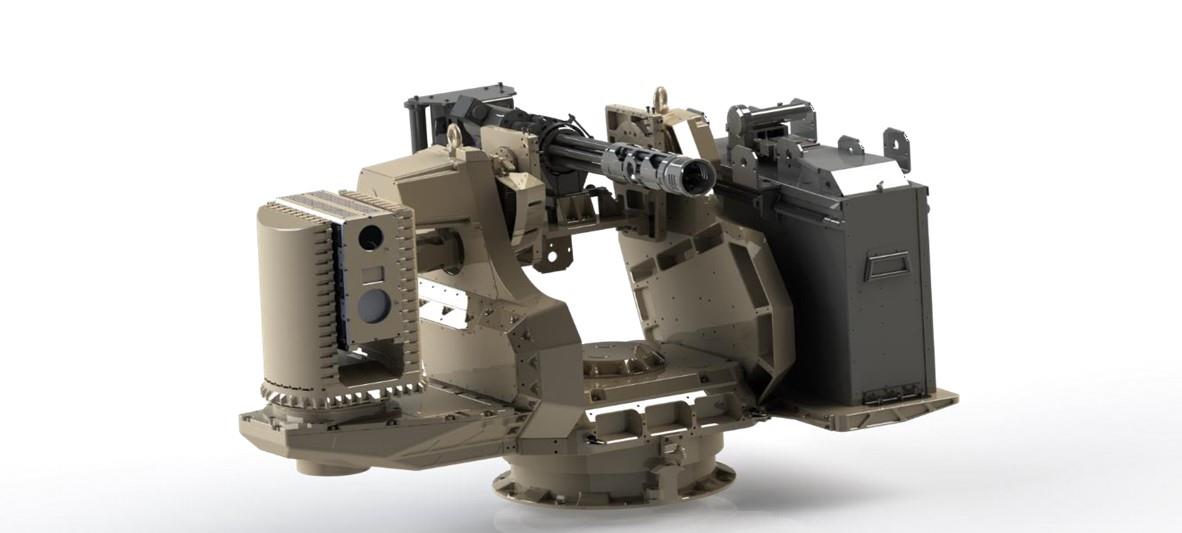

TUFAN 7.62 mm x 51, 6-Barrelled , Remote Controlled Stabilized Weapon System

Ammunition Capacity    : 3000 rounds (Optional)
Ammunition Weight       : 28 gr/pcs. (Belted Ammunition)
Platform Weight             : < 260 Kg. (Except Armor and Ammunition),
Weapon Weight             : 30 kg
Flexible Ammunition Weight    : 2 kg (for 1 mt)
Console Weight                       : 30 kg
Height                                      : 85 cm.
Width                                       : 150 cm.
WEAPON+FAF+AMMUNITION BOX+ TURRET : 30 kg+2kg+84kg +260kg =376 kg
Movement Limits:
Ascension    : -10° / +60°(Optional to 80° )
Horizontol    : n x 360 ° (with Slip Ring)
ASPAR Turret Capabilities :
•    Stabilization (Optional)
•    Firing at moving and moving targets
•    Thermal / daytime vision
•    Automatic target tracking
•    Ballistic calculation
•    Laser distance measurement
•    Computer-based firing control functions
•    Shot count
•    End of ammunition warning
* Integration with external sensors and command control systems
•    Compliance with enviromental conditions (MIL-STD-810G) & EMI, EMC standards. (MIL-STD-461G)
Contact us for more details: export@digitest.com.tr
