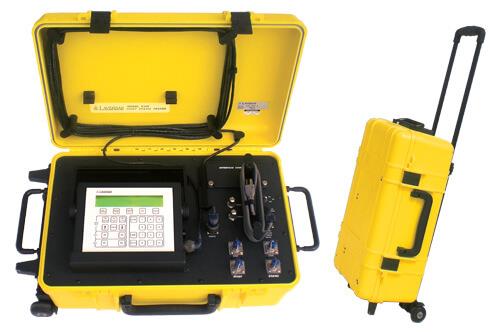

131-0180:  6300-M3 / 2-channel Ramp tester for Military Fighter/Attack aircraft.

 Application: Military Fighter / Attack aircraft - Air Data Pitot & Static

Achieves 100,000 ft, 1,000 knots; operates from -40oC to +55oC.

Standard with Encoder-interface (""-E"") & IEEE-488 (""-I"").

NSN: 4920 01 569 1292

ALT Ranges: 0.1 to 42 inHg, -4,000 ft. to 100,000 ft., Accuracy 0.002 inHg

VSI Ranges: 0 ft. to 50,000 ft./min Accuracy 1% of Rate

Airspeed Ranges: 0 to 110 inHg, 0 to 1100 knots, Accuracy 0.003 inHg

Airspeed Rate: 0 to 800 knots/min

Mach Range: 0 to 5.0 Mach Accuracy 0.001 above 0.2 Mach

Operating temp. -40oC to 55oC"

NOTE: Standard  Leadtime 12 Weeks. Accessories Available.  *Subject to End-user Certification.

** Please message me for an up-to-date quotation.
